| V Series Fusible resistors offer high inrush energy with higher average power rating for repetitive operation,
and incorporate a thermal cutoff device to ensure safe disconnect under circuit fault conditions.
The high-temperature, flame-retardant DAP case with cement fill is designed to provide a graceful failure
and opening of the thermal cutoff upon electrical fault. The thermal cutoff can interrupt 10A @ 250vac.

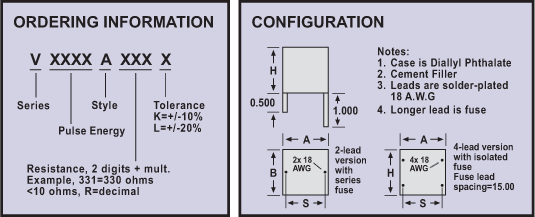

Two configurations are offered, a two-lead device with integrated series fuse, and a four-lead device
with 5kV isolation between the fuse and the independent resistor. |
| |
| |
Part Number |
A
(mm) |
B
(mm) |
H
(mm) |
S
(mm) |
Energy 1
(Joules) |
Power 2
(Watts) |
Resistance
Range ( Ω ) |
| V0400Axxxx |
20 |
20 |
26 |
17.5 |
400 |
4.5 |
100-4.7K |
| V1400Axxxx |
26 |
26 |
26 |
22 |
1400 |
7.5 |
47-2.2K |
| V2800Axxxx |
32 |
32 |
39 |
27.5 |
2800 |
12 |
22-1.5K |
|
|
| Notes: 1. Single impulse 2. Rated @ 20oC. Derate linearly to 0 W @ 130oC. |
|
| |
| |
|
| |
| |
|
| |
| |

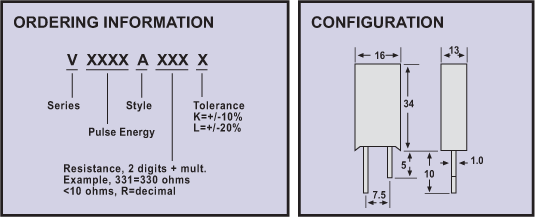

| V0100 Series Fusible resistors offer high inrush energy with higher average power rating for repetitive operation. The flameproof construction employs a small-footprint, standard-geometry ceramic case with cement fill. The V0100 is designed to provide a graceful failure and opening of the electrical circuit under fault or over-temperature conditions. The integral thermal cutoff device ensures safe disconnect of 7A@ 250vac. |
| |
| |
Part Number |
A
(mm) |
B
(mm) |
H
(mm) |
S
(mm) |
Energy 1
(Joules) |
Power 2
(Watts) |
Resistance
Range ( Ω ) |
| V0100Axxxx |
16 |
15 |
35 |
7.5 |
100 |
7.5 |
33-1.0K |
|
|
| Notes: 1. Single impulse 2. Rated @ 20oC. Derate linearly to 0 W @ 130oC. |
|
| |
| |
 |
| |
| |
 |
 |
